May 07, 2024 – According to a recent listing by the United States Patent and Trademark Office (USPTO), Apple has been granted a new patent for a foldable iPhone, featuring a unique hinge design that allows for both inward and outward folding.

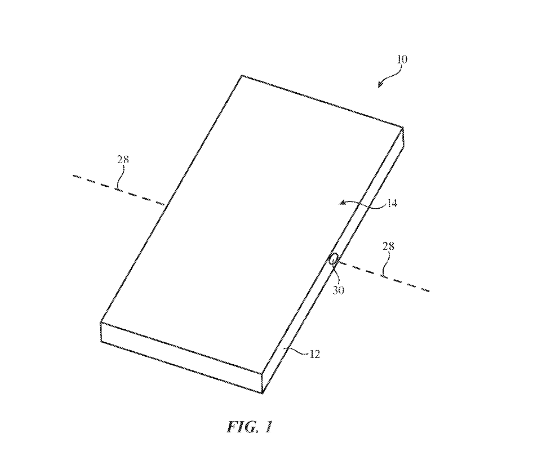

![](https://www.itbear.com/wp-content/uploads/2024/05/image-17.png)
While most mainstream foldable phones currently on the market only offer either an inward or outward folding mechanism, Apple’s newly patented design explores a bidirectional folding approach.
![](https://www.itbear.com/wp-content/uploads/2024/05/image-18.png)

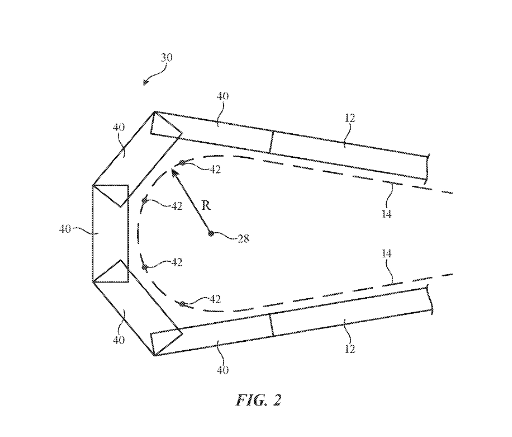

Illustrated in Figure 2, the device utilizes multiple #40 hinges that are interconnected and rotate in a coupled motion. This enables the first and second sections of the enclosure #12 to extend in series. However, patent diagrams suggest that the overall rotation of adjacent hinged rods may be somewhat limited.
![](https://www.itbear.com/wp-content/uploads/2024/05/image-19.png)
Figure 5 depicts a gear-like hinge mechanism, wherein a gear plate features an opening #84 to accommodate an axle #82, facilitating the plate’s rotation around the axle. As one half of the enclosure (#12) rotates around axle #28, the mating teeth of the plates synchronize the rotation of the other half of the enclosure.
